Stop Buffer, Adjusting

• The stop -2- is securely mounted, bolt tightening specification -3- : 10 Nm
• The stop cannot be adjusted.

-- Lift cover -4- from stop buffer.

-- Loosen the screw -5- on the stop buffer -6- slightly until stop buffer can be moved to highest position.

-- Close rear lid to initial locking position -1- using light pressure over center.

-- Open rear lid again.

-- Tighten the bolt -5- , tightening specification: 10 Nm

-- Press cover -4- onto stop buffer.

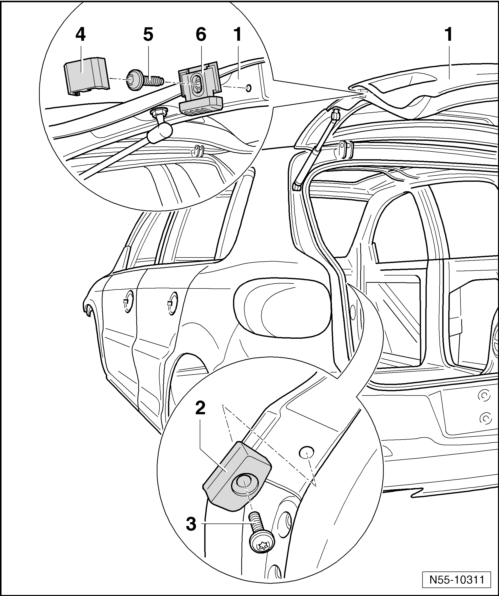

Fig 1: Identifying Stop Buffer Adjusting Components
