Tail Lamps In Side Panel Overview

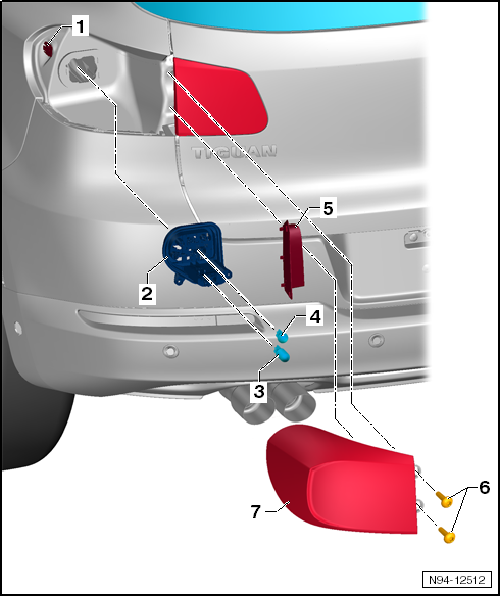

Fig 1: Overview Of Tail Lamps In Side Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Side Latch
Bulb Holder
- Bolts 1.5 Nm
- Removing and installing, refer to TAIL LAMP BULB .
Left Brake/Tail Light -M21- and Right Brake/Tail Light -M22-
- 12V, P21W
- Removing and installing, refer to TAIL LAMP BULB .
Left Rear Turn Signal Lamp -M6- and Right Rear Turn Signal Lamp -M8-
- 12V, 21W
- Removing and installing, refer to TURN SIGNAL BULB .
Divider
Screws
- 3 Nm
Tail Lamp Housing in Side Panel
- Removing and installing, refer to TAIL LAMPS .
