Fog Lamps Overview

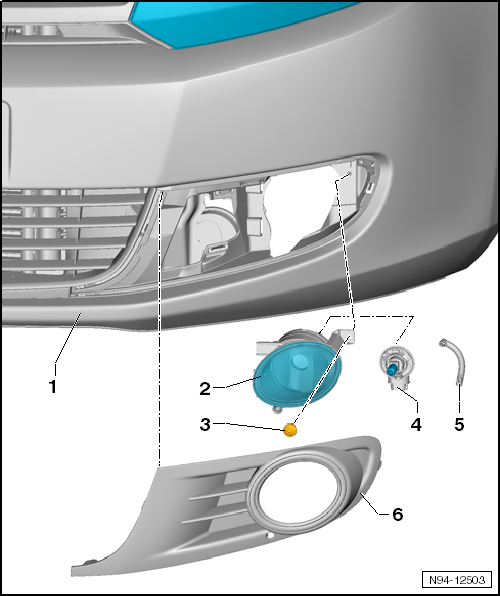

Fig 1: Overview Of Fog Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Bumper Cover
Fog Lamp Housing
- Removing and installing, refer to FOG LAMP .
Bolt
- 1.5 Nm
Left Fog Lamp Bulb -L22- Or Right Fog Lamp Bulb -L23- And Left Cornering Lamp Bulb -L148- And Right Cornering Lamp Bulb -L149-
- Bulb HB4 12V, 51W
- Removing and installing, refer to FOG LAMP BULB AND STATIC CORNERING LAMP .
Vent Hose
Divider
