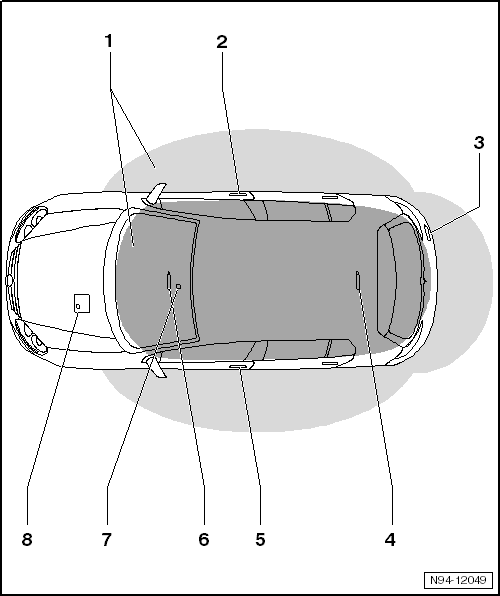

Access/Start Authorization, KESSY Overview
- Antenna Contact Point Coverage Area
- Front Passenger Exterior Door Handle
The following components are integrated in front passenger exterior door handle:
- Front Passenger Exterior Door Handle Touch Sensor -G416-.
- Front Passenger Access/Start System Antenna -R135-.
Removing and installing passenger-side outside door handle, refer to PASSENGER OUTSIDE DOOR HANDLE .
- Checking the front passenger access/start authorization antenna, refer to Front Passenger Access/Start System Antenna -R135-, CHECKING .
- Checking the front passenger exterior door handle touch sensor, refer to Front Passenger Exterior Door Handle Touch Sensor -G416-, CHECKING .
- Access/Start System Antenna In Rear Bumper -R136-
- Component location, behind the rear bumper cover.
- Removing and installing, refer to Access/Start System Antenna In Rear Bumper -R136- .
- Checking the access/start authorization antenna in rear bumper, refer to Access/Start System Antenna In Rear Bumper -R136-, CHECKING .
- Access/Start System Antenna In Luggage Compartment -R137-
- Component location, in the center of the luggage compartment in front of the spare wheel well.
- Removing and installing, refer to Access/Start System Antenna In Luggage Compartment -R137- .
- Checking the access/start authorization antenna in luggage compartment, refer to Access/Start System Antenna In Luggage Compartment -R137-, CHECKING .
- Driver Side Outside Door Handle
The following components are integrated in driver side outside door handle:
- Driver Exterior Door Handle Touch Sensor -G415-.
- Left Access/Start Authorization Antenna -R134-.
- Removing and installing driver-side outside door handle, refer to DRIVER OUTSIDE DOOR HANDLE .
- Checking the driver exterior door handle touch sensor, refer to Driver Exterior Door Handle Touch Sensor -G415-, CHECKING .
- Checking the driver access/start authorization antenna, refer to Driver Access/Start System Antenna -R134-, CHECKING .
- Access/Start System Antenna 1 In Vehicle Interior -R138-
- Component location, under the center console in front of the selector lever.
- Removing and installing, refer to Access/Start System Antenna 1 in Vehicle Interior -R138- .
- Checking the access/start authorization antenna 1 in vehicle interior, refer to Access/Start System Antenna 1 In Vehicle Interior -R138-, CHECKING .
- Start System Button -E378-
- Component location, in the center console in front of the selector lever.
- Removing and installing, refer to Start System Button -E378- .
- Access/Start Authorization Control Module -J518-
- Component location, inside the driver footwell above the brake pedal.
- Removing and installing, refer to Access/Start Authorization Control Module -J518- .
- Coding the access/start authorization control module, refer to Access/Start Authorization Control Module -J518-, CODING .
