Pass-Through Unit With Center Armrest: Removing

-- Move the left rear bench seat all the way forward.

-- Press corresponding button in headrest guide and pull headrest -3- out of the pass-through unit.

-- Remove bolt -1- (20 Nm).

-- Fold the armrest -2-, as shown in the figure (approx. 50°), forward -arrow A-.

-- Pull the armrest up and out of the mount in the backrest -arrow B-.

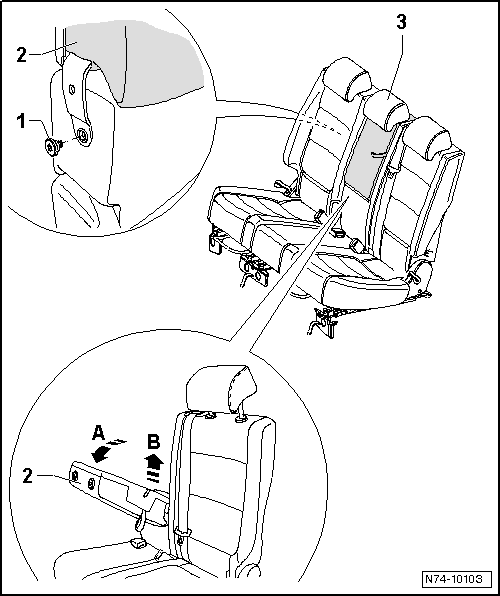

Fig 1: Armrest Can Be Removed Or Installed In Shown Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
