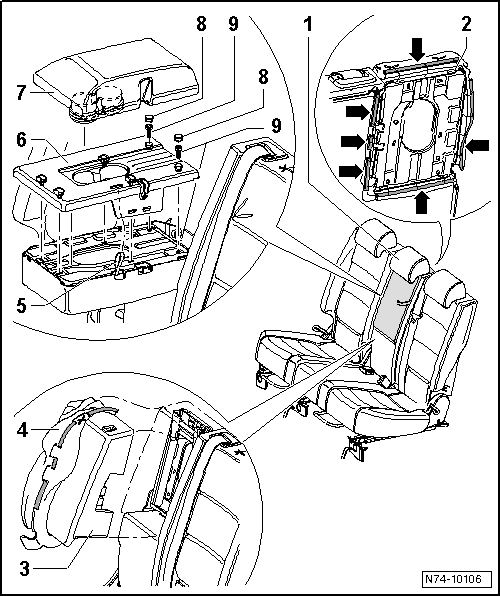

Cover And Cushion, Pass-Through Unit With Center Armrest: Removing
-- Remove the upholstered lid -7- from the armrest.
-- Remove the two caps -8- with a small screwdriver.
-- Remove the two bolts -9- (2.5 Nm).
-- Pull the storage compartment -6- upward and out of the mounts in the armrest.
NOTE:
When installing, the release loop -5- must be routed through the compartment -6-.
-- On the back side, remove all the cover profiles -arrows- from the mounts in the armrest frame -2-.
-- Remove the cover -4- and the cushion -3- from the armrest frame.
-- Fold the cover from the cushion.
