Overview - Body Tail Lamps

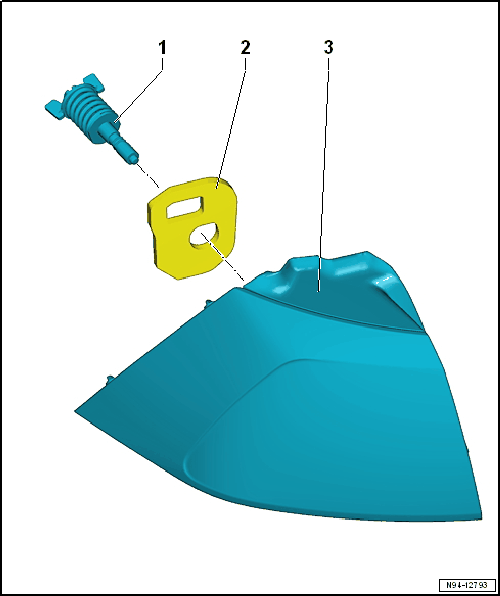

Fig 1: Exploded View Of Body Tail Lamps, Sedan, With LED Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fastening Element
- 2 Nm
Seal
- Replace if damaged.
- Self-adhesive
Left Tail Lamp -MX3- /Right Tail Lamp -MX4-
- Body Tail Lamps
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
