Overview - High-Mounted Brake Lamp

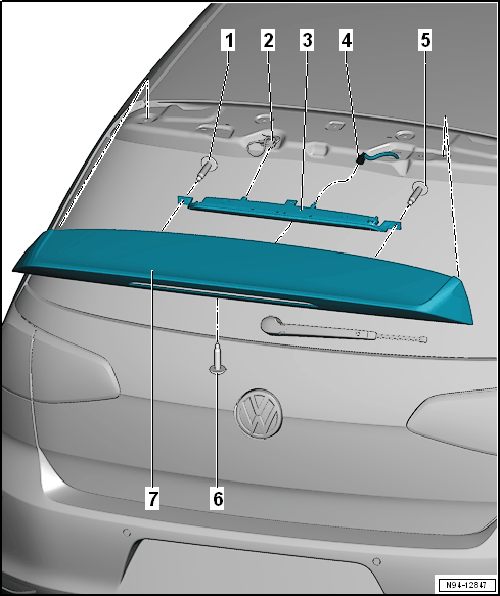

Fig 1: Exploded View Of High-Mounted Brake Lamp, GTI, GTD & R
GWWN94-12847Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 2 Nm
  2. Brake Lamp Connector
  3. High-Mounted Brake Lamp
  4. Washer Fluid Hose Connection
  5. Bolt
    • 2 Nm
  6. Bolt
    • 2 Nm
  7. Spoiler on Edge of Roof
