Emergency Release From "P"

Do Not Remove the Handle.

-- Unclip the shift cover and hold it to the side.

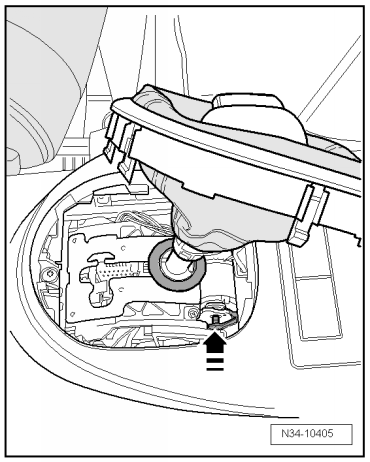

GWWN34-10405Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the brake or set the parking brake.

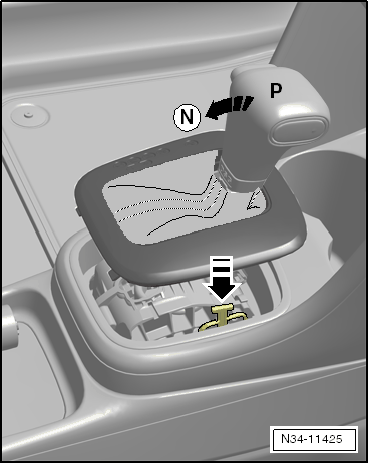

GWWN34-11425Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push onto the yellow plastic part in direction of -arrow-.

The selector lever can now be moved out of >>P<<.
