Battery Fan, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

The Hybrid Battery Unit -AX1- is not removed.

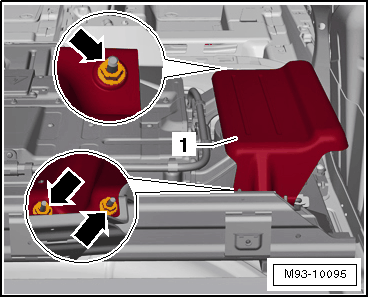

-- Remove the nuts from the reinforcement -1- -arrows- and then remove the reinforcement -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

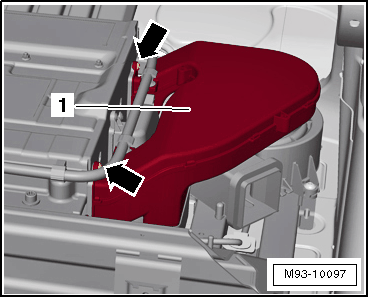

-- Remove the screws from the exhaust air guide -1- -arrows- and then remove the exhaust air guide -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -2- from Battery Fan 1 -V457- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

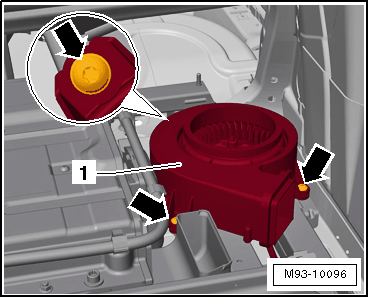

-- Remove the 3 screws -arrows- from Battery Fan 1 -V457- -1- and then remove the Battery Fan 1 -V457-.
