Removing Front Air Supply Duct

WARNING: This page is about a different variant/trim than selected.

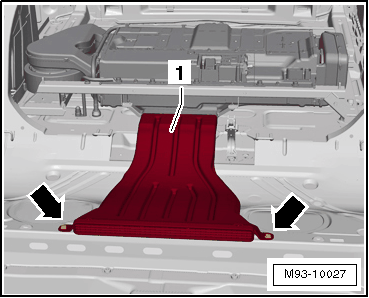

-- Remove the mounts -arrows- on the air supply duct -1- and then remove the air supply duct -1- forward.

GWWM93-10027Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
