Electrical A/C Compressor -V470- FUSE, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Disable the high voltage system. Refer to High Voltage System, De-Energizing .
-- Disconnect the 12V battery. Refer to BATTERY .
-- Remove the air damper. Refer to SECONDARY AIR SYSTEM (CPLA, CPPA, CPKA, CPRA) or SECONDARY AIR SYSTEM (CNLA, CRJA) .

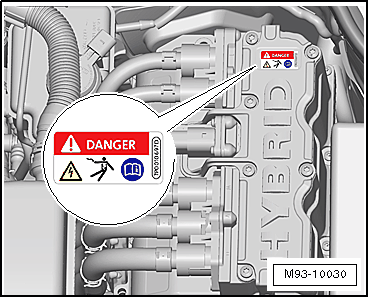

-- Be careful not to damage the red warning label on the Electric Drive Power and Control Electronics -JX1-.

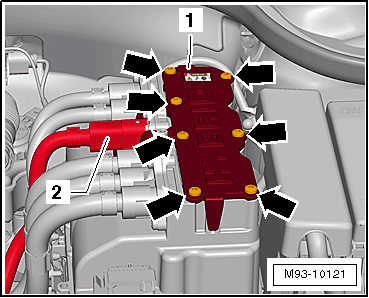

-- Remove the bolts -arrows- on the cover -1- and then remove the cover -1-.
NOTE:
Be careful not to damage the seal inside the cover.
-- Remove the screws -arrows- from the Electrical A/C Compressor -V470- -1- fuse.
-- Remove the Electrical A/C Compressor -V470- fuse -1- from the Electric Drive Power and Control Electronics -JX1-.
