Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING: Removing

-- Disable the high voltage system. Refer to High Voltage System, De-Energizing .

-- Disconnect the 12V battery. Refer to BATTERY . .

-- Remove the air damper. Refer to SECONDARY AIR SYSTEM (CPLA, CPPA, CPKA, CPRA) or SECONDARY AIR SYSTEM (CNLA, CRJA) .

-- Be careful not to damage the red warning label on the Electric Drive Power and Control Electronics -JX1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Remove the cover -1- first.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

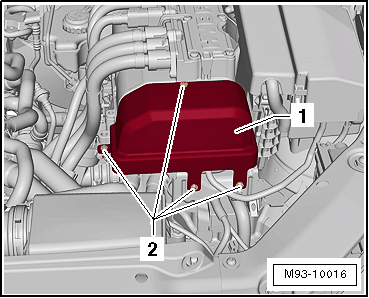

-- Remove the screws -2- and then remove the cover -1- from the Electric Drive Power and Control Electronics -JX1-.

-- Remove the cover from terminal 30/terminal 31.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

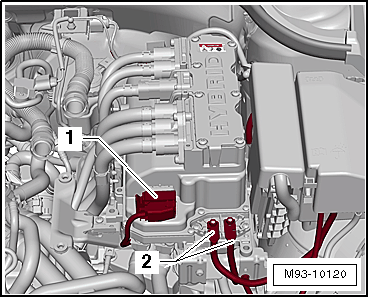

-- Unscrew and remove terminal 30/terminal 31 -2-.

-- Remove the connector -1-.

-- Loosen the potential equalization cable from the Electric Drive Power and Control Electronics -JX1- Figure

-- Disconnect and remove the Electric A/C Compressor High Voltage Cable -P3- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts on the cover -1- -arrows- and then remove the cover -1-.

-- Remove the bolts from the high voltage connections -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts from the high voltage cables -2 and 3-.

-- Pull the high voltage cables -1- carefully with light movements out of the Electric Drive Power and Control Electronics -JX1-.

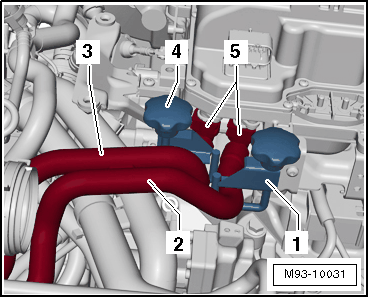

-- Clamp off both coolant lines -2 and 3- with Hose Clamps - Up To 25mm :3094  -1 and 4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open and remove both hose couplings -5-.

-- Remove the screws -arrows- and then remove the Electric Drive Power and Control Electronics -JX1- -1- from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
