OVERVIEW - Electric Drive Power and Control Electronics -JX1-

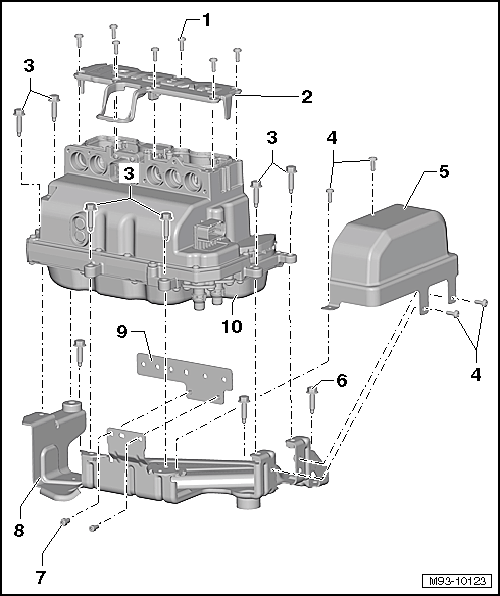

Fig 1: Exploded View Of Electric Drive Power and Control Electronics -JX1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 7 Nm
   • Quantity: 7
2. Cover
3. Bolt
   • 20 Nm
   • Quantity: 5
4. Bolt
   • 9 Nm
   • Quantity: 4
5. High Voltage Connection Cover Plate
6. Bolt
   • 9 Nm
   • Quantity: 3
7. Bolt
   • 8 Nm
   • Quantity: 2
8. Bracket
9. Cable Bracket
10. Electric Drive Power and Control Electronics -JX1-
    • Removing and installing. Refer to ELECTRIC DRIVE OUTPUT AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .

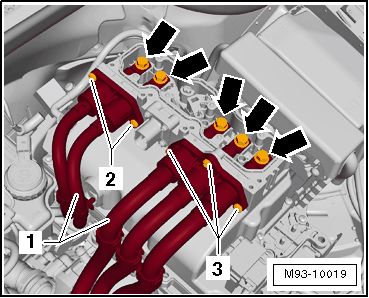

Fig 2: Tightening Specifications, High Voltage Contacts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• High voltage contacts -arrows- : 20 Nm
• Threaded connection -2 and 3- : 5 Nm

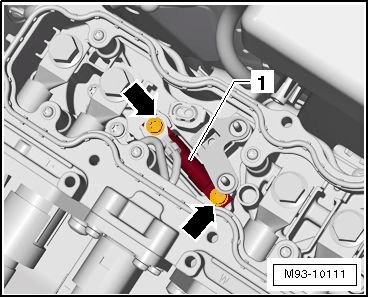

Fig 3: Tightening Specifications for the Electric A/C Compressor -V470- Fuse

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Screws -arrows- : 3 Nm

Tightening Specifications for Terminal 30/terminal 31

• Nuts: 20 Nm
