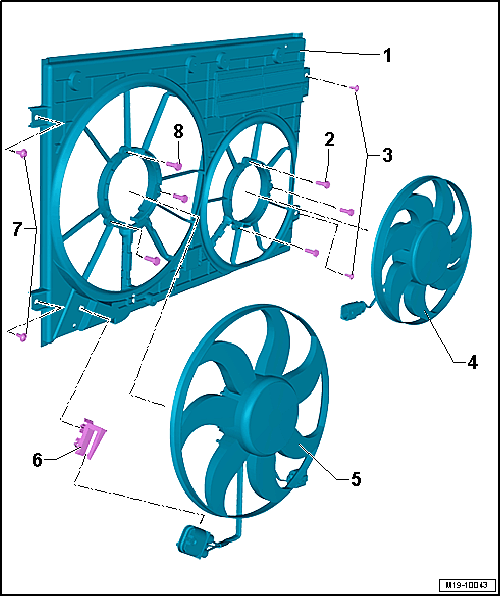

Overview - Fan Shroud And Radiator Fan
WARNING: This page is about a different variant/trim than selected.
- Fan Shroud
- Removing and installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Fan shroud to radiator
- Bolt
- Fan shroud to radiator
- Tightening specification. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .
- Radiator Fan 2 -V177-
- Removing and installing. Refer to RADIATOR FAN, REMOVING AND INSTALLING .
- Radiator Fan -V7-
- Removing and installing. Refer to RADIATOR FAN, REMOVING AND INSTALLING .
- Bracket
- Coupling point
- Bolt
- Fan shroud to radiator
- Tightening specification -item ) OVERVIEW - RADIATOR/RADIATOR FAN-.
- Bolt
- 5 Nm
