Fan Shroud, Removing And Installing: Notes

WARNING: This page is about a different variant/trim than selected.

-- Remove the bolts at the top of the fan shroud -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION . .

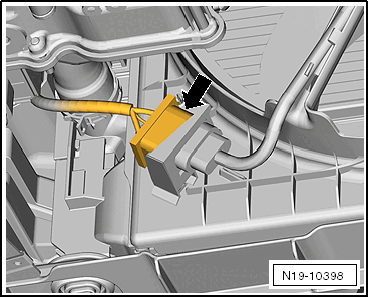

-- Release and disconnect the connector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts at the bottom of the fan shroud -2-.

-- Remove the air shroud downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
