Auxiliary Cooler, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

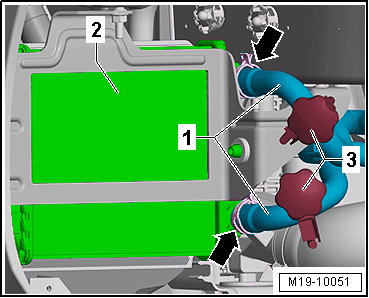

-- Clamp off both coolant hoses -1- with :VAS6362 -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the spring-type clamps -arrows- to remove both coolant hoses -1- from the auxiliary cooler -2-.

-- Remove nuts -arrows- and auxiliary cooler -1- with bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Disengage the air duct from the radiator when removing the auxiliary cooler.
