Overview - Electric Coolant Pump

WARNING: This page is about a different variant/trim than selected.

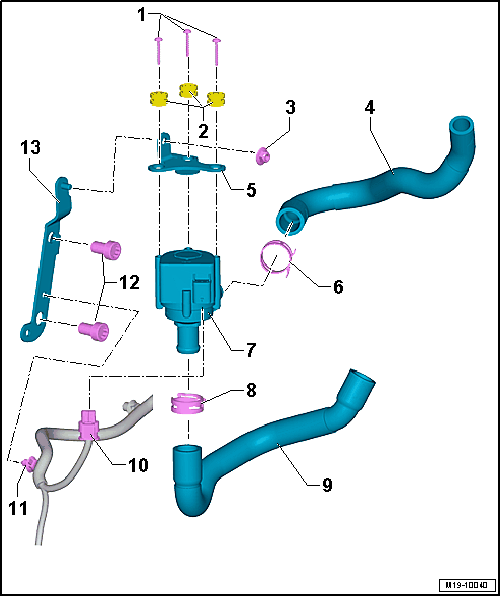

Fig 1: Exploded View Of Electric Coolant Pump
GWWM19-10040Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 5 Nm
  2. Plastic Sockets
  3. Nut
    • 9 Nm
  4. Coolant Hose
  5. Bracket
    • For After-Run Coolant Pump -V51-
  6. Spring Clamp
  7. After-Run Coolant Pump -V51-
  8. Spring Clamp
  9. Coolant Hose
  10. Connector
    • Clipped on bracket
  11. Clip
  12. Bolt
    • 20 Nm
  13. Bracket
    • After-Run Coolant Pump -V51- to the engine
    • Needs to be removed in order to remove the engine
    • The lower attachment point is mount for the engine bracket
