Overview - Coolant Pump/Thermostat: Notes

WARNING: This page is about a different variant/trim than selected.

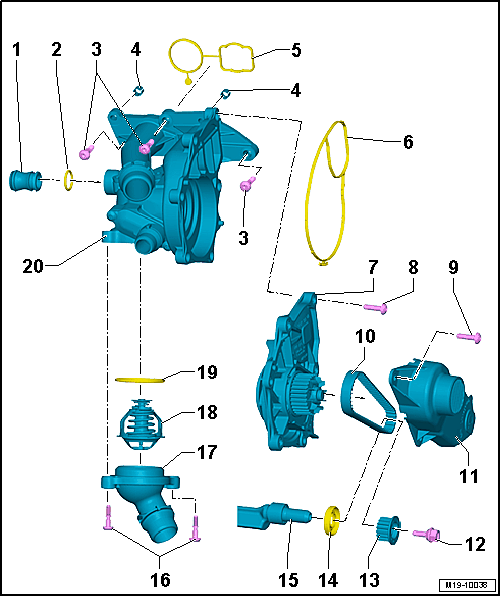

Fig 1: Exploded View Of Coolant Pump/Thermostat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connection
O-ring
- Replace after removing
- Coat with coolant
Bolt
- Tightening specification and sequence. Refer to Tightening Specifications .
Centering Pin
Seal
- Replace after removing
Seal
- Replace after removing
Coolant Pump
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- For a new coolant pump, remove the protective cap
Bolt
- Tightening sequence. Refer to Coolant Pump Tightening Specifications And Sequence .
Bolt
- 9 Nm
Toothed Belt
- For the coolant pump
- Removing and installing. Refer to COOLANT PUMP TOOTHED BELT, REMOVING AND INSTALLING .
Toothed Belt Guard
Bolt
- 10 Nm +90°
- Replace after removing
- Left-hand thread
Toothed Belt Drive Gear
- Note the installation position
Intake Side Balance Shaft Seal
- Refer to BALANCE SHAFT SEALING RING, REPLACING, INTAKE SIDE
Balance Shaft
Bolt
- 9 Nm
Connection
Thermostat
O-ring
- Replace after removing
Coolant Thermostat, Removing and Installing
- Removing and installing. Refer to COOLANT THERMOSTAT HOUSING, REMOVING AND INSTALLING .
