Coolant Thermostat Housing, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- for the coolant line from the intake manifold.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

-- Remove the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .

-- Lift clamps -1 and 2- and remove coolant hoses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

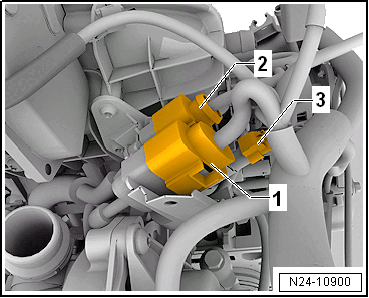

-- Disconnect the connectors -1, 2 and 3- underneath the intake manifold.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

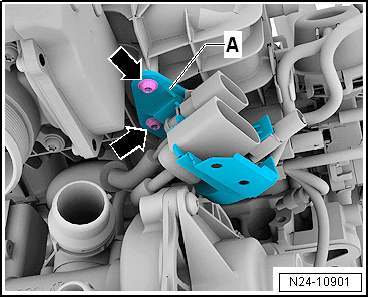

-- Remove the bolts -arrows- for the bracket -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -arrow- from the After-Run Coolant Pump -V51- -1-.

-- Remove the nut -3- and remove the After-Run Coolant Pump -V51- -1- from the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the generator wire to the side. Remove the bolt -3- from the coolant thermostat housing.

-- Remove the remaining bolts -1 through 5-.

-- Remove the thermostat housing from the centering pins and remove the engine oil cooler.
