Coolant Pump Toothed Belt, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

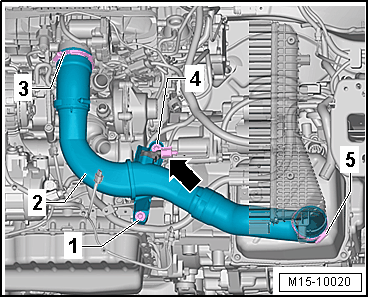

-- Loosen the hose clamps -3 and 5-.

-- Disconnect the connector from the Charge Air Pressure Sensor -G31- -arrow-.

-- Remove the bolts -1 and 4- and then remove the air duct pipe downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the clamp -2-, remove the coolant supports and set them aside.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

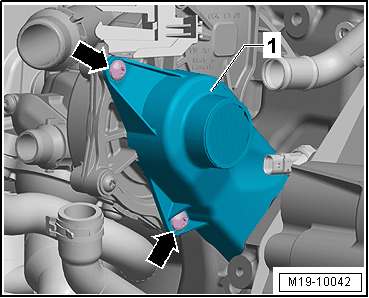

-- Remove the bolts -arrows- and remove the toothed belt guard -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct pipe by lifting the clip -2- and opening the screw-type clamp -3-.

-- Counterhold the vibration damper with the :T10355  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Counterhold the vibration damper and remove the bolt from the coolant pump the drive wheel -1- by loosening three turns. Use :VAG1410  and :T10360  .

-- Remove the toothed belt -2-.
