Charge Air Cooling Circuit Cooler, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Hoses are secured with spring clips. If a repair is required only use spring clips.

The :VAS6340 are recommended for installing spring clamps.

When installing coolant hoses, make sure they are free of stress and do not come into contact with other components (observe markings on coolant connections and hoses).

-- Remove the noise insulation or impact guard. Refer to NOISE INSULATION . .

-- Drain the coolant. Refer to DRAIN THE COOLANT .

-- Remove the fan shroud with the radiator fan. Refer to FAN SHROUD WITH RADIATOR FAN, REMOVING AND INSTALLING .

-- Remove the radiator. Refer to RADIATOR, REMOVING AND INSTALLING .

-- Remove the front bumper cover. Refer to FRONT BUMPER .

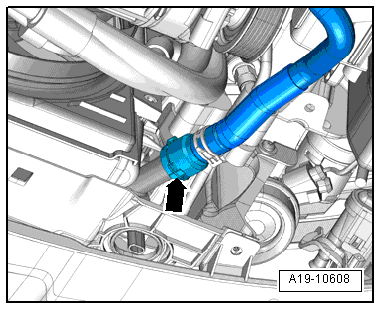

-- Remove the coolant hose -arrow- from the lower coolant hose, to so this release the wire retainer.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

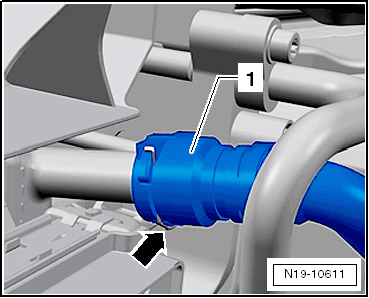

-- Remove the hose -1- upward by releasing the wire retainer.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the radiator mount bolts -arrows- on the lock carrier.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With A/C System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the condenser bolts -arrows-.

-- Secure the condenser to the lock carrier.

NOTE:

Ensure that the coolant lines and hoses are not stretched, kinked or bent.

Continuation For All Vehicles

-- Remove the radiator for the lower charge air cooling circuit cooler from the bracket.

-- Remove the radiator for the charge air cooling circuit cooler downward.
