OVERVIEW - Heater Support Pump -V488-, VERSION 2

WARNING: This page is about a different variant/trim than selected.

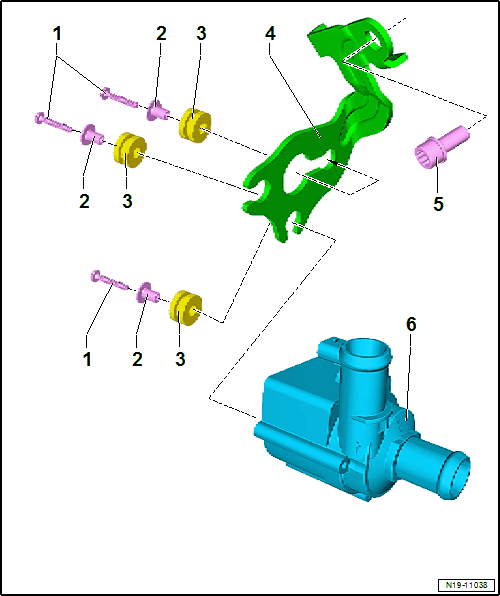

Fig 1: Exploded View Of Heater Support Pump -V488-, Version 2
GWWN19-11038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 1.5 Nm
  2. Sleeve
  3. Rubber Bushing
    • Make sure it sits properly in bracket
  4. Bracket
    • For the Heater Support Pump -V488-
  5. Bolt
    • 40 Nm
  6. Heater Support Pump -V488-
