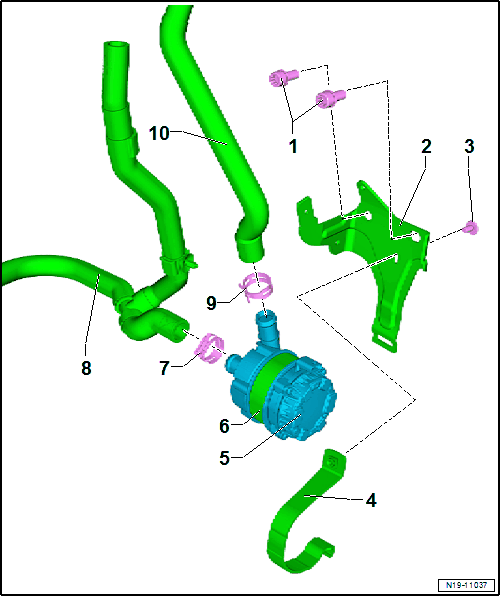

OVERVIEW - Charge Air Cooling Pump -V188-, VERSION 3
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 40 Nm
- Bracket
- For the Charge Air Cooling Pump -V188-
- Bolt
- 23 Nm
- Retaining Bracket
- Charge Air Cooling Pump -V188-
- Removing and installing. Refer to Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, VERSION 3 .
- Rubber Bracket
- Clamp
- Coolant Hose
- Clamp
- Coolant Hose
