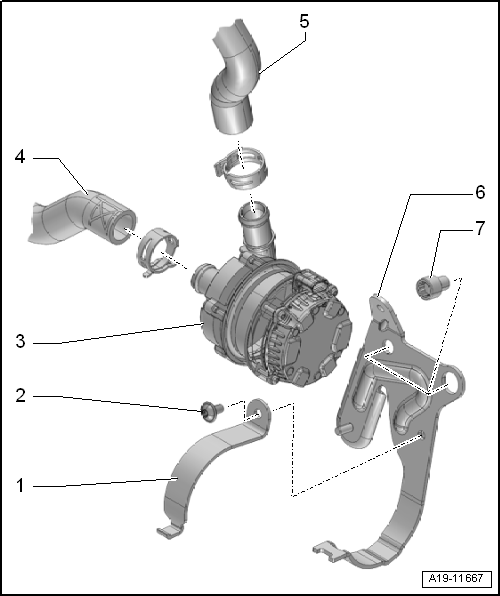

OVERVIEW - Charge Air Cooling Pump -V188-, VERSION 2
WARNING: This page is about a different variant/trim than selected.
- Retaining Bracket
- Bolt
- 23 Nm
- Charge Air Cooling Pump -V188-
- Removing and installing. Refer to Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, VERSION 1 AND 2 .
- Coolant Hose
- Coolant Hose
- Bracket
- For the Charge Air Cooling Pump -V188-
- Bolt
- 40 Nm
