Heater Support Pump -V488-, REMOVING AND INSTALLING, VERSION 3: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
NOTE:
Secure all hose connections with standard production hose clamps.
If the Heater Support Pump -V488- was removed from the bracket

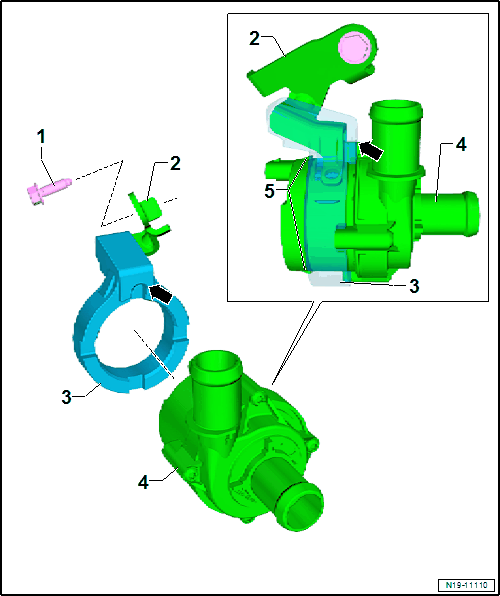

-- Slide the Heater Support Pump -V488- into the bracket -3-.
-- Pay attention to the installation position while doing this.
-- The raised section on the pump must sit in the opening -arrows- as shown.
-- Slide in until the tabs -5- engage behind the bracket -3-.
-- Check that it is positioned correctly by gently pulling on it.
-- Check the coolant level. Refer to COOLANT, FILLING .
