Heater Support Pump -V488-, REMOVING AND INSTALLING, VERSION 1: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION .

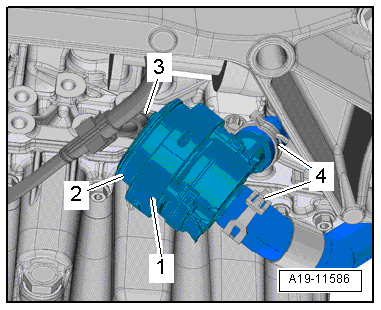

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Place a cloth underneath to catch any escaping coolant.

-- Clamp off the coolant hoses using the :3094 .

-- Loosen the hose clamps -4- and remove the coolant hoses.

-- Disengage the Heater Support Pump -V488- -2- from the retaining loop -1-.
