Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, VERSION 1 AND 2: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the noise insulation. Refer to NOISE INSULATION . .
Vehicles With Charge Air Cooling Pump -V188-, Version 1:
-- Disconnect the connector -3-.
NOTE:
Place a cloth underneath to catch any escaping coolant.
-- Clamp off the coolant hoses using the :3094 .
-- Loosen the clamps -2- and remove the coolant hoses.
-- Disengage the Charge Air Cooling Pump -V188- -1- from the retaining loop -4-.

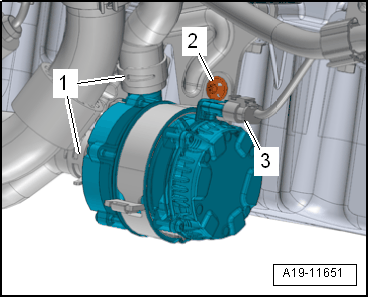

Vehicles With Charge Air Cooling Pump -V188-, Version 2:
-- Disconnect the connector -3-.
NOTE:
Place a cloth underneath to catch any escaping coolant.
-- Clamp off the coolant hoses using the :3094 .
-- Loosen the hose clamps -1- and remove the coolant hoses.
-- Remove the bolt -2-, open the securing strap and remove the Charge Air Cooling Pump - V188-.
