Coolant Thermostat, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Drain the coolant. Refer to DRAIN THE COOLANT .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamp -2- and remove the air duct pipe -1-.

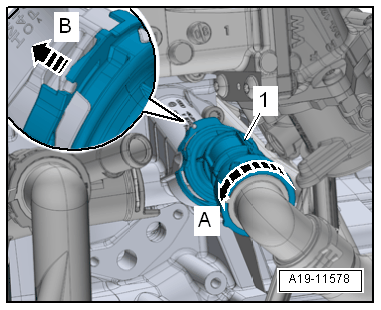

-- Open the locking mechanism in direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the hydraulic return hose -1- in the direction of -arrow A- and remove.

-- Remove the coolant thermostat.
