Coolant Thermostat, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
NOTE:
Replace the O-ring after removing.
-- Clean and smooth the O-ring sealing surface.
-- Coat the new O-ring with coolant.

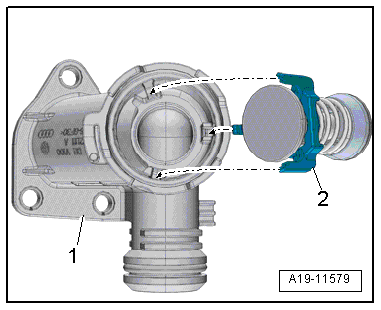

-- Place the coolant thermostat -2- in the coolant thermostat housing.
- The retaining tabs must engage in the guides -arrows-.
-- Fill with coolant. Refer to COOLANT, FILLING .
