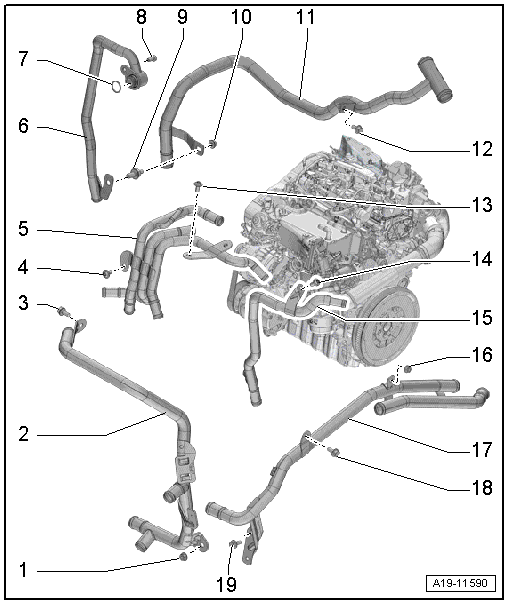

Overview - Coolant Pipes
WARNING: This page is about a different variant/trim than selected.
NOTE:
The arrows on the coolant pipes and ends of coolant hoses must align.
- Nut
- 10 Nm
- Right Front Coolant Pipe
- Not Installed
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Upper Front Coolant Pipes
- Removing and installing. Refer to UPPER FRONT COOLANT PIPES, REMOVING AND INSTALLING .
- Right Rear Coolant Pipe
- Removing and installing. Refer to RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
- O-ring
- Replace after removing.
- Coat with coolant
- Bolt
- 10 Nm
- Bolt
- 23 Nm
- Nut
- 10 Nm
- Rear Coolant Pipe
- Removing and installing. Refer to REAR COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Left Front Coolant Pipe
- Removing and installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Nut
- 10 Nm
- Left Coolant Pipes
- Removing and installing. Refer to LEFT COOLANT PIPES, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- 8 Nm
