Upper Front Coolant Pipes, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to DRAIN THE COOLANT .

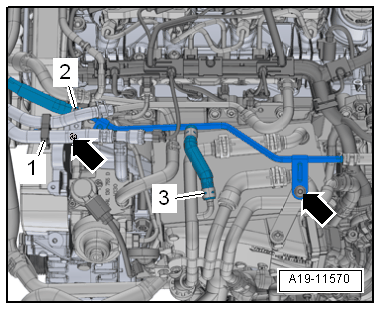

-- Unclip the bracket -1- with the fuel hoses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Loosen the hose clamp -3- and remove the coolant hose.

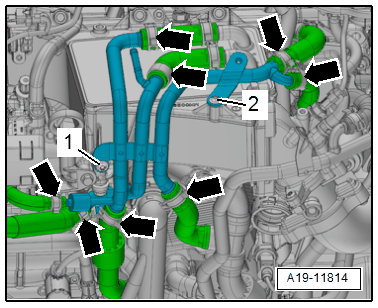

-- Remove the bolts -1 and 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Remove the upper front coolant pipes.
