Left Front Coolant Pipe, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter and air duct. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to DRAIN THE COOLANT .

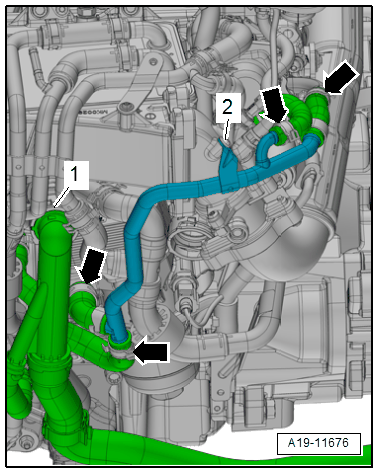

-- Lift the clamp -1- and remove the coolant connection.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Remove the front left coolant pipe.
