Left Coolant Pipes, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Drain the coolant. Refer to DRAIN THE COOLANT .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the battery tray. Refer to BATTERY .

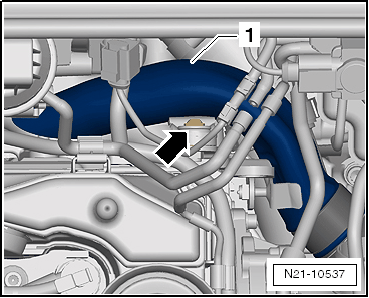

-- Remove the bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the prewarming pipe -1-.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamp -2- and remove the air duct pipe -1-.

-- Remove the cable bracket from the transmission and push slightly aside. Refer to SELECTOR MECHANISM (02E) , SELECTOR MECHANISM (02Q, 02QA) , SELECTOR MECHANISM (0CG) and SELECTOR MECHANISM .

Vehicles with Manual Transmission:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

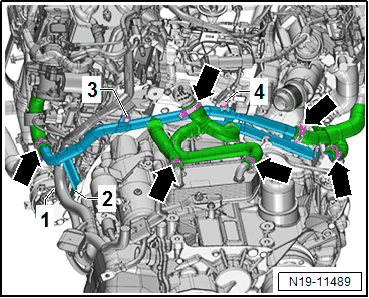

-- Free up the wiring harness -1-.

-- Remove the nut -4- an bolts -2 and 3-.

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Remove the left coolant pipes.

Vehicles With Transmission Fluid Cooler:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wiring harness -1- from the coolant pipe bracket.

-- Remove the nut -4- and bolts -2 and 3-.

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Remove the left coolant pipes.
