Overview - Electric Coolant Pump

WARNING: This page is about a different variant/trim than selected.

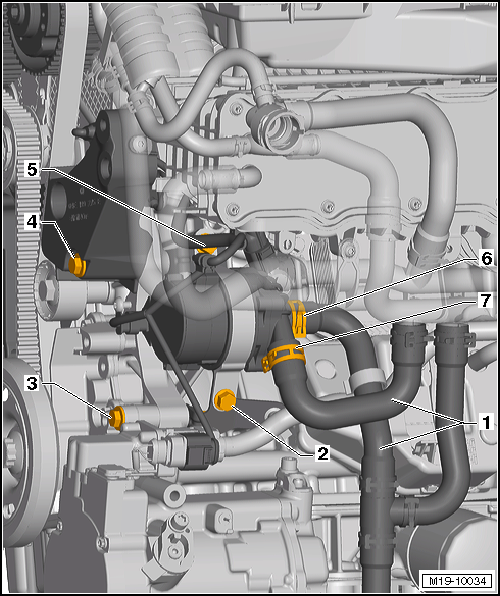

Fig 1: Exploded View Of Electric Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Hose
- To the Low Temperature Circuit Coolant Pump -V468-
Bolt
- 10 Nm
- Pump to bracket
Bolt
- 20 Nm
- Low Temperature Circuit Coolant Pump -V468- bracket to engine
Bolt
- 20 Nm
- Low Temperature Circuit Coolant Pump -V468- bracket to engine mount bracket
Bolt
- 10 Nm
- Pump to bracket
Spring Clamp
Low Temperature Circuit Coolant Pump -V468-
- With bracket
- Removing and installing. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .
