Tightening Specifications

WARNING: This page is about a different variant/trim than selected.
Component Tightening Specification
Bolts -A through F- 8 Nm

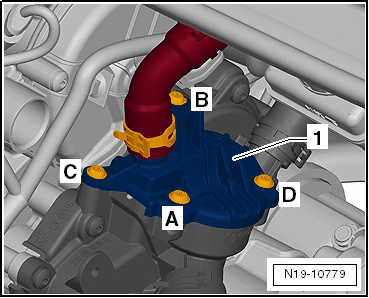

Fig 1: Tightening Sequence
GWWN19-10779Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts for the cover -1- in the sequence -A through D-.

Component Tightening Specification
Bolts -A through D- 8 Nm
