Coolant Thermostat For Cylinder Block Coolant Circuit, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

-- Remove the bolts in the following sequence: -F through A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant pump from the coolant thermostat housing.

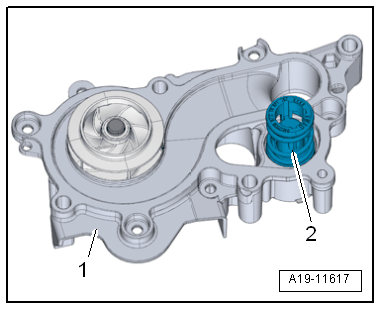

-- Remove the coolant thermostat -2- from the coolant pump -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
