Coolant Pump Toothed Belt Sprocket, Removing And Installing, Version 1: Installing

WARNING: This page is about a different variant/trim than selected.

Installing the toothed belt sprocket:

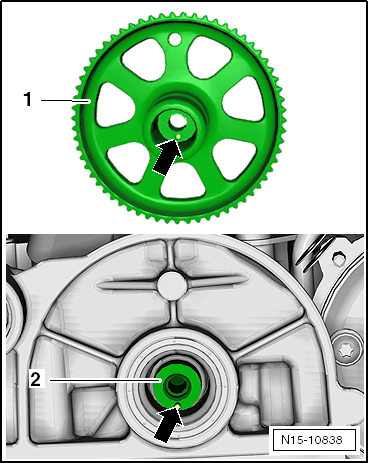

-- Mount the toothed belt sprocket -1- on the camshaft -2- so that the camshaft pin fits into the hole in the toothed belt sprocket -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
