Coolant Pipes, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
CAUTION:
The cooling system is under pressure when the engine is warm. Risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.
-- Open the coolant reservoir cap -arrow-.
-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

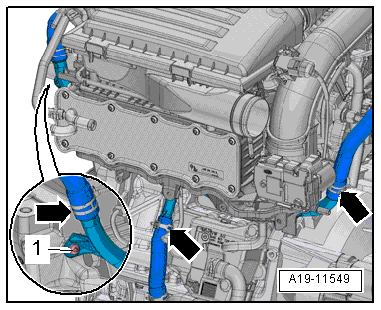

-- Clamp off the coolant hoses at the coolant pipe with the :3094 .
-- Loosen the hose clamps -arrows- and remove the coolant hoses.
-- Remove the coolant pipe.
