Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Measuring Set - Magnetic Plate - 50mm :VW385/17
• Dial Gauge Holder :VW387
• Press Plate :VW401
• Press Plate :VW402
• Press Piece - Rod :VW408A
• Press Piece - Rod :VW412

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Press Piece - Multiple Use :VW510
• Press Piece - Multiple Use :30-14
• Press Piece - Front Control Arm :2040
• Press Piece - Bushing :3259
• Bearing Installer - Wheel Bearing :3345
• Torque Wrench 1331 5-50Nm :VAG1331
• Dial Gauge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Press Plate :VW401
• Press Plate :VW402
• Press Piece - Rod :VW408A
• Press Piece - Multiple Use :VW412
• Press Piece - 31.5mm :VW418A
• Press Piece - Multiple Use :VW454

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Press Piece - Multiple Use :VW455
• Press Piece - Multiple Use - Spacing Sleeve :VW472/2
• Press Piece - Multiple Use :VW510
• Press Piece - Multiple Use :30-14
• Press Piece - Front Control Arm :2040
• Press Piece - Output Shaft Gear/Final Drive Gear :3002

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

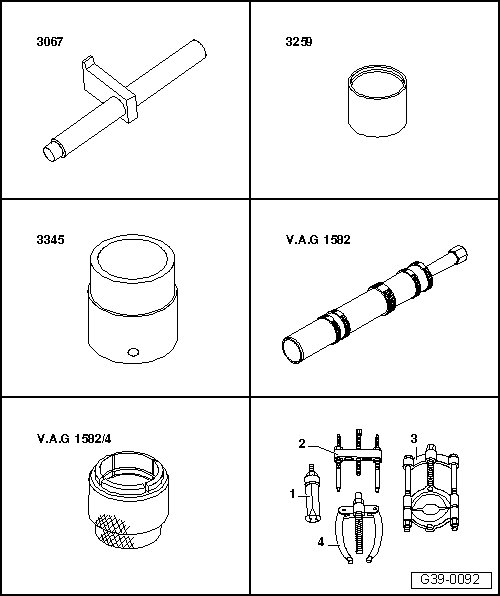

Special Tools And Workshop Equipment Required

• Flywheel Retainer :3067
• Press Piece - Bushing :3259
• Bearing Installer - Wheel Bearing :3345
• Puller - Taper Roller Bearing :VAG1582
• Puller - Taper Roller Bearing - Adapter 4 :VAG1582/4
• -1- Puller - Kukko Internal - 46-56mm :Kukko 21/7
• -4- Puller - Kukko Counterstay :Kukko 22/2

Special Tools And Workshop Equipment Required

• Seal Installer - Radial Oil Seal :T10082

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Slide Hammer Set :VW771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Torque Wrench 1331 5-50Nm :VAG1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Sealing Grease :G 052 128 A1
• Inductive Heater :VAS6414

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

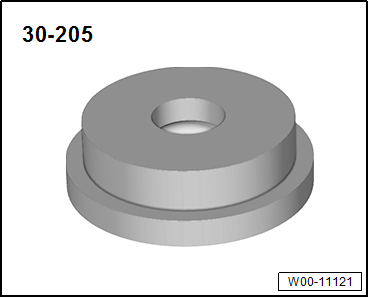

• Press Piece - Multiple Use :30-205

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Axle Flange :3158

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
