Installing The Bearing Inner Race/Taper Roller Bearing

WARNING: This page is about a different variant/trim than selected.
GWWN39-1106Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
WARNING:

Wear safety gloves.

-- Heat the tapered bearing inner race to approximately 100 °C (212 °F) before installing.

-- Support the inner race on the on opposite side with the :VW455  .

The shoulder of the :VW455  points to the differential housing.

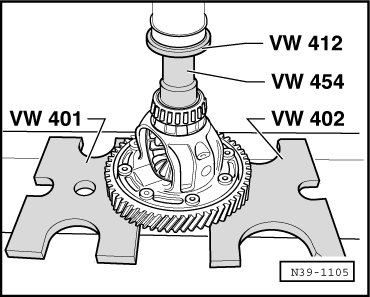

GWWN39-1105Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
WARNING:

Wear safety gloves.

-- Heat the tapered bearing inner race to approximately 100 °C (212 °F) before installing.
