Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the noise insulation. Refer to NOISE INSULATION . .

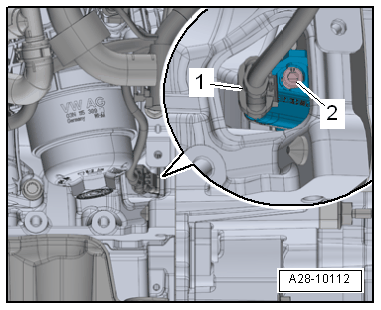

-- Disconnect the connector -1- using the :T10118 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To release the connector without the :T10118 :

Using a screwdriver push the connector for the engine speed sensor.

Simultaneously lift up on the release button using a thin wire hook.

-- Remove the bolt -2- and remove the Engine Speed Sensor -G28-.
