Camshaft Position Sensor -G40-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

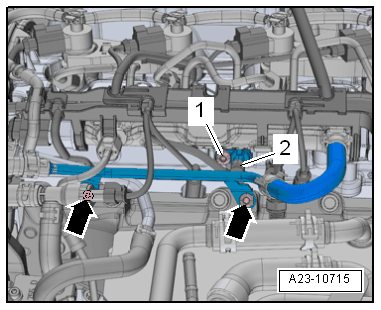

-- Remove the bolts -arrows- and press the fuel lines forward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the bolt -1- and remove the Camshaft Position Sensor -G40-.
