Turbocharger Connections, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the resonator for the intake air scoop. Refer to INTAKE AIR SCOOP RESONATOR, REMOVING AND INSTALLING .

-- Remove the air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .

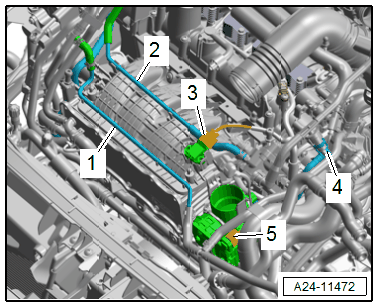

-- Release and disconnect the vacuum line -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

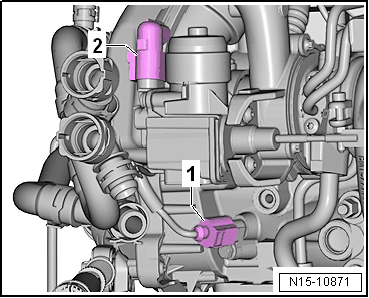

-- Release and remove the connectors -1- from the Engine Coolant Temperature Sensor -G62-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With Charge Air Pressure Actuator -V465-, Variant 1

-- Release and remove the connectors -2- from the Charge Air Pressure Actuator -V465-.

Vehicles With Charge Air Pressure Actuator -V465-, Variant 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connectors -2- from the Charge Air Pressure Actuator -V465-.

Continuation For All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

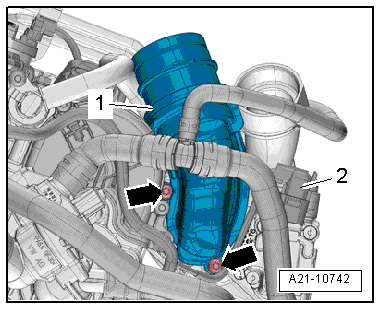

-- Free up the wiring harness on the cover -2- -arrows-.

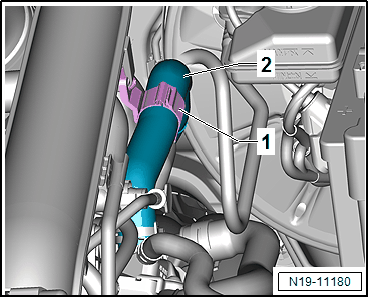

-- Open the bracket -1- and remove the coolant hose -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

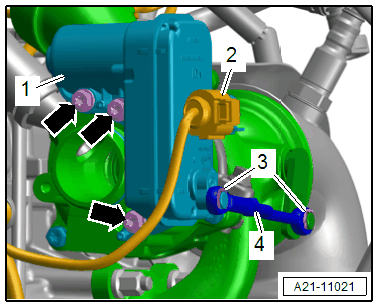

-- Remove the bolts -arrows- with :VAS6234 and :T10405 .

-- Remove the support -1- upward.
