Overview - Turbocharger, Version 2

WARNING: This page is about a different variant/trim than selected.

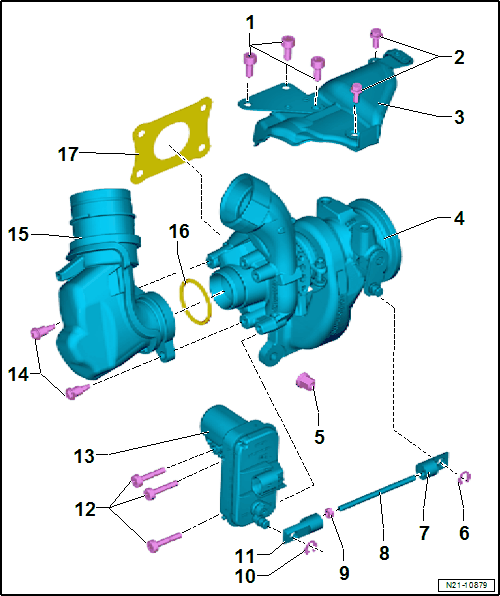

Fig 1: Exploded View Of Turbocharger (Version 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 25 Nm
Bolt or Nut
- 8 Nm
Heat Shield
Turbocharger
- Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
Nut
- 14 Nm
- Replace after removing.
Clip
- Replace after removing.
Operating Lever
Control Rod
Lock Nut
- 6 Nm
- Secure with sealing wax
Clip
- Replace after removing.
Operating Lever
Bolt
- 8 Nm +45°
- Replace after removing.
Charge Air Pressure Actuator -V465-
- Different versions of the charge air pressure actuator may be installed.
- Removing and installing. Refer to Charge Air Pressure Actuator -V465-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Connection
O-ring
- Replace after removing.
Gasket
- Replace after removing.
