Overview - Lines On Turbocharger

WARNING: This page is about a different variant/trim than selected.

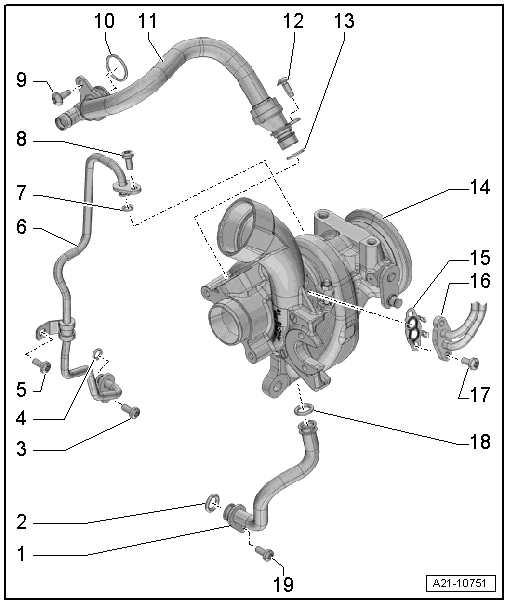

Fig 1: Exploded View Of Turbocharger Lines
GWWA21-10751Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Oil Return Line
  2. Seal
    • Replace after removing.
  3. Bolt
    • 9 Nm
  4. Seal
    • Replace after removing.
  5. Bolt
    • 9 Nm
  6. Oil Supply Line
  7. Seal
    • Replace after removing.
  8. Bolt
    • 9 Nm
  9. Bolt
    • 8 Nm
    • Replace after removing.
  10. Seal
    • Replace crankshaft housing ventilation hose if damaged, refer to -item  ) Hose-.
    • Coat with clean engine oil before assembly
  11. Hose
    • For the crankcase ventilation
  12. Bolt
    • 8 Nm
    • Replace after removing.
  13. Seal
    • Replace crankshaft housing ventilation hose if damaged, refer to -item  ) Hose-.
    • Coat with clean engine oil before assembly
  14. Turbocharger
  15. Seal
    • Replace after removing.
  16. Coolant Lines
    • Supply and return
  17. Bolt
    • 8 Nm
  18. Seal
    • Replace after removing.
  19. Bolt
    • 9 Nm
