Overview - Charge Air System: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before checking or repairing, check if all air duct pipes and hoses as well as vacuum lines are connected properly and are not leaking.

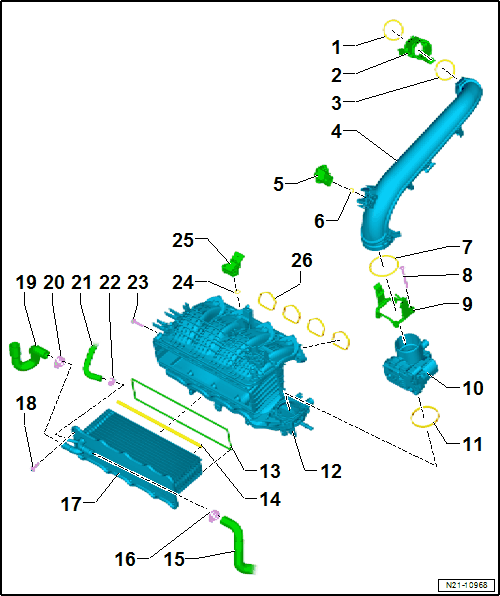

Fig 1: Exploded View Of Charge Air System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seal
- Replace after removing.
- When installing, coat the seal with clean engine oil
Connection
Seal
- Replace after removing.
- When installing, coat the seal with clean engine oil
Air Duct Pipe
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Charge Air Pressure Sensor -GX26-
- Consists of
  Charge Air Pressure Sensor -G31-

  Intake Air Temperature Sensor -G42-
- Removing and installing. Refer to Charge Air Pressure Sensor -GX26-, REMOVING AND INSTALLING .
Seal
- Not available separately.
- Replace the Charge Air Pressure Sensor -GX26- when damaged
Seal
- Replace after removing.
- When installing, coat the seal with clean engine oil
Bolt
- 7 Nm
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the tightening specification
- Thread cutting
Clip
- For the air duct pipe
Throttle Valve Control Module -GX3-
- Consists of
  Throttle Valve Control Module -J338-

  EPC Throttle Drive -G186-

  EPC Throttle Drive Angle Sensor 1 -G187-

  EPC Throttle Drive Angle Sensor 2 -G188-
- Removing and installing. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .
Seal
- Replace after removing.
Intake Manifold
Removing and installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
Seal
- Replace after removing.
Sealing Lip
- Replace after removing.
- When installing, coat the seal with clean engine oil
Coolant Hose
Clamp
Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Fill with coolant after replacing. Refer to COOLANT, DRAINING AND FILLING - Filling .
Bolt
- 15 Nm
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the tightening specification
- Thread cutting
Coolant Hose
Clamp
Coolant Hose
Clamp
Bolt
- Tightening specification and sequence. Refer to OVERVIEW - INTAKE MANIFOLD .
Seal
- Replace after removing.
Intake Manifold Sensor -GX9-
- Consists of
  Intake Air Temperature Sensor 2 -G299-

  Manifold Absolute Pressure Sensor -G71-
- Removing and installing. Refer to Intake Manifold Sensor -GX9-, REMOVING AND INSTALLING .
Seal
- Replace after removing.
- Quantity: 4

Fig 2: Air Guide Hose Clamps Sizes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The hose connections as well as air duct pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with standard production hose clamps.

In order to be able to securely mount the air guide hoses on their connectors, the bolts on the used clamps must be sprayed with a rust remover before installing.
