Charge Air Pressure Sensor -GX26-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

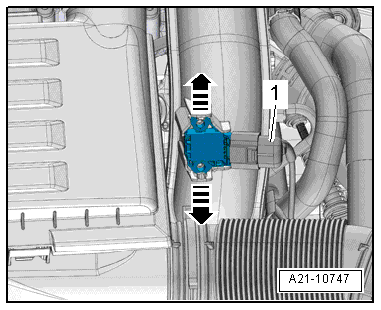

-- Release and disconnect the connector -1-.

GWWA21-10747Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches -arrows- and remove the Charge Air Pressure Sensor -GX26-.
