Air Duct Pipe, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Free up the air duct hoses -2- on the air duct pipe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the line -2- for the EVAP system, to do so push the release buttons on both sides.

-- Remove the connector from the Charge Air Pressure Sensor -GX26-.

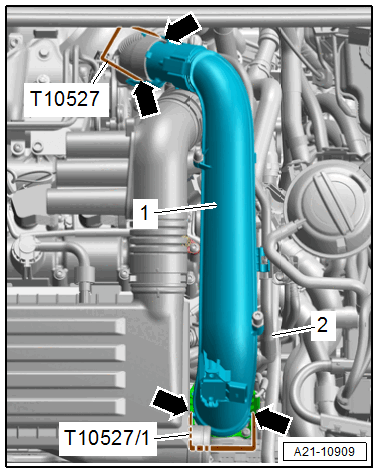

-- Release the retainers -arrows- using the :T10527 and :T10527/1 .

-- Remove the air duct pipe -1-.

-- Seal the open connections with clean plugs from the :VAS6122 .
