Transmission, Transporting
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Transmission Support Jig :3336
- Shop Crane :VAS6100

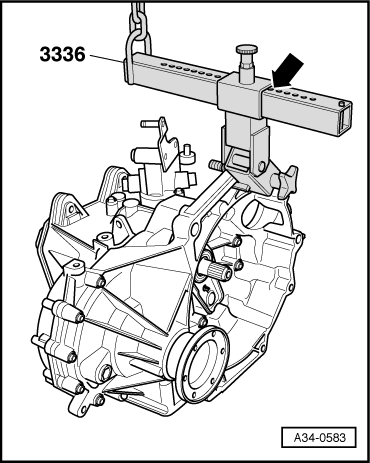

-- Attach the :3336 to the clutch housing.
-- Move the support arm on the sliding bar using the locking bolt -arrow-.
Number of visible holes = 6.
-- Lift the transmission using the :VAS6100 and the :3336 .
-- Set the transmission down, for example, into the transport container.
